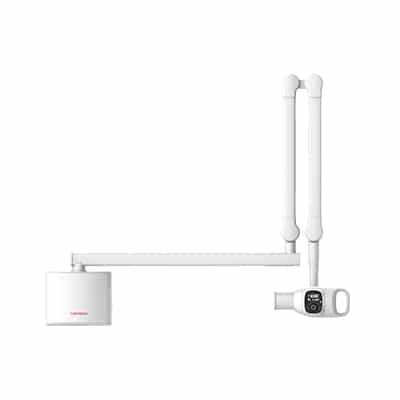

Vatech Ez Ray Air Wall

  • Categories: Imaging, X-Ray Imaging

THE SMART ESSENTIALS FOR YOUR CLINIC,
EzRay Air

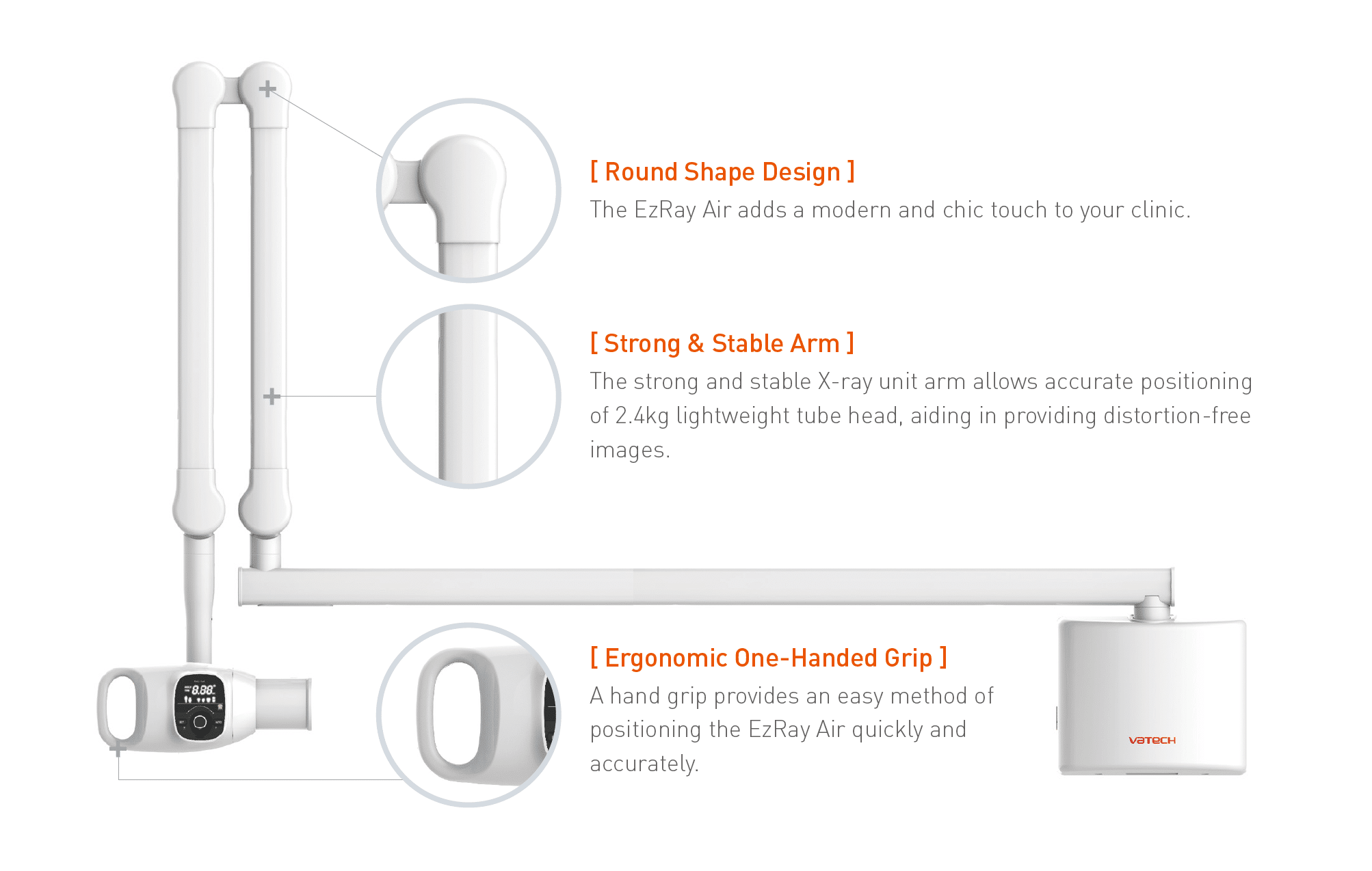

  • Smart angulation for optimal results
  • Intuitive & convenient operating panel
  • One dial for all function
  • 2.4kg lightweight tube head for stable and safe use
  • Compact design for easy use



Focal Spot 0.4 mm (IEC 60336)
Tube Voltage (kV) 65 kV
Current (mA) 3.0 mA
Exposure Time Range 0.05 ~ 0.5 (0.01s increment)
Source to Skin Distance Min. 200 mm
X-ray Field Default : 60 mm Round, 30×40 mm Rectangular
Optional: 20×30 mm Rectangular
Arm Length [Option] 450, 600, 900 mm
Accessories Remote Exposure Switch (Hand Switch / Doorbell Switch)
Weight 15.9 kg (Arm Length 450 mm)
16.6 kg (Arm Length 600 mm)
17.9 kg (Arm Length 900 mm)
